Product Description

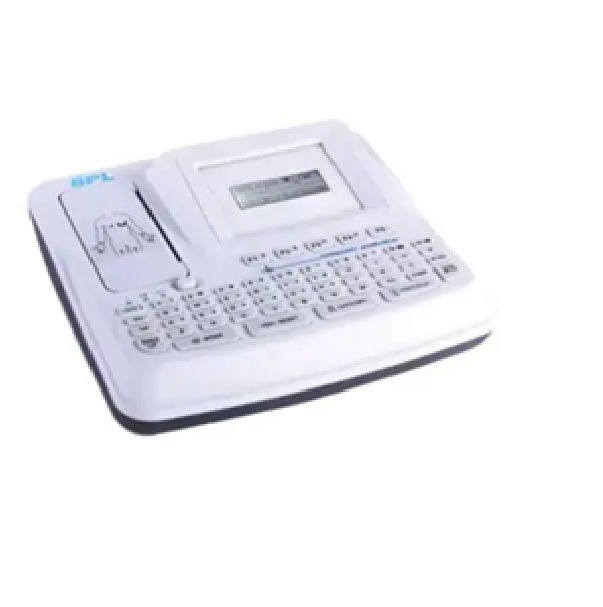

The BPL Cardiart 8108 View 6-Channel ECG is a high-performance electrocardiograph designed for clinics, hospitals, diagnostic centers, and cardiology practices. Featuring a large 5.7-inch color TFT display, the machine provides crisp waveform visualization and real-time ECG monitoring for quick, accurate diagnosis.
With 6-channel ECG output, the Cardiart 8108 View captures high-precision cardiac data using advanced digital signal processing. It supports simultaneous 12-lead acquisition, ensuring clarity and accuracy in every waveform. The automatic measurement and interpretation function enhances clinical efficiency, making it ideal for high-volume patient environments.
The compact, lightweight system is equipped with USB data transfer, internal memory storage, and PC connectivity options. It offers multiple recording modes such as Auto, Manual, and Arrhythmia Analysis, making it suitable for diverse diagnostic requirements.
A thermal printer provides sharp ECG printouts with customizable formats, while the device’s user-friendly interface allows easy operation by medical staff. Designed for reliable, continuous performance, the BPL Cardiart 8108 View is an excellent choice for modern cardiac assessment and patient monitoring.
⭐ Specifications
ECG Type: 6-Channel Electrocardiograph
Display: 5.7' color TFT screen
Lead System: 12-lead simultaneous acquisition
Recording Modes: Auto / Manual / Rhythm / Arrhythmia
Printer: High-resolution thermal printer
Storage: Internal memory for patient data
Connectivity: USB, PC data transfer
Filters: AC, EMG, Drift filters for clean waveforms
Power Source: AC mains and rechargeable battery
Battery Backup: Long-lasting for mobile diagnostics
Interpretation: Auto-analysis and interpretation
Weight: Lightweight, portable design
⭐ Applications
Hospital cardiac departments
OPD & IPD patient ECG screening
Diagnostic and pathology centers
Emergency and ambulance ECG monitoring
Routine and advanced cardiac evaluation
⭐ What’s in the Box
1 × BPL Cardiart 8108 View ECG Machine
Patient Cable (12-Lead)
Limb & Chest Electrodes
Thermal Paper Roll
Power Cable & Rechargeable Battery
User Manual & Warranty Card
⭐ FAQs
1. Does the BPL Cardiart 8108 support 12-lead ECG?
Yes, it supports simultaneous 12-lead acquisition with 6-channel output.
2. Can I store patient data in the device?
Yes, it has internal memory for ECG record storage.
3. Does it include automatic analysis?
Yes, it features auto-measurement and interpretation for quick diagnosis.
4. Is it portable and battery-operated?
Yes, it offers a lightweight design with rechargeable battery backup.
5. Can I transfer reports to a computer?
Yes, via USB connectivity, allowing smooth data export. ...Read Less
More Details
Description
Features & Specifications
BPL 8108 View ECG Machine : Product Description
A compact and portable 6-channel ECG recorder with real-time display of 12-lead ECG on a 5.7-inch color display. The BPL 8108 View includes advanced interpretation algorithms for accurate diagnosis, supports external printers, and interfaces with PC using optional Smart-view software.
Key Features
6-channel ECG recording with 3.5-inch colour LCD screen
Alphanumeric keyboard for easy operation
Automatic measurements & interpretation
24-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000 Hz sampling frequency
Internal storage up to 800 ECGs (expandable via USB)
High-performance Li-ion rechargeable battery
Report formats: PDF (optional SCP/FDA-XML/DICOM)
Connectivity: FTP, barcode scanner, USB printer
Optional PC interface software
